VIBRATORY MOTORS
|
|
STAR TRACE Vibratory motors are Robust, Reliable, High Loadable Quiet Running and require no maintenance.

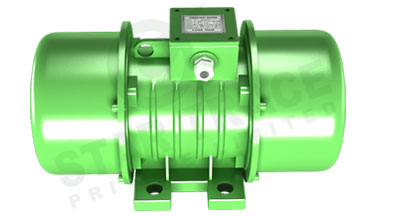

STAR TRACE Vibratory Motors are totally enclosed 3Phase, Squirrel cage induction motors with adjustable, eccentric weights mounted at both the ends of the shaft, to set up vibrations during rotation. The design of shaft and the selection of bearings has been carefully done to withstand heavy radial loads.
These motors are used in various material handling equipment's such as vibrating screens, conveyors, and feeder. They are also used on hoppers, silos to prevent congestion of material flow. Foundry shake - outs and compacting machines use these motors for fast and efficient operation.
- Generously dimensioned cylindrical roller bearing, self lubricating maintenance-free, long life expectancy.
- Embedded in high quality impregnating resin vibration-proof winding, insensitivity to damp and dust.
- Dust-tight and Water-tight through a sealing covering with special circular rubber washer.
- Reliable starting by means of a high-powered starting torque.
- Quality-tested components, each motor tested under load.
- Permanent and well legible setting marketing of the unbalanced weights.
- One of Two lifting lugs.
- Vibration - proof joining through the considerable Tensility of the mounting screws.
- Absolutely secure centrifugal mounting.
- Universal mounting facilities through an optimum choice of inter spacing in the base mounting.
- Enhanced Reliability & low maintenance.
- Increased Efficiency.
- Rugged construction for tough environment.
| Centrifugal Force Range | : | From 42 to 14250 N |
| Operating torque range | : | From 3.6 to 3600 Kgs. |
| Working weight range | : | From 1 to 6000Kgs |
| Power connection | : | From 3 phase current with 50hz 415v.a.c. |
| Rated consumption | : | 0.1 to 10Kw |
| : | Upto 60 deg.C | |
| : | IP 65as in DIN 40 050, P.2 or IP 55as in DIN IEC 34 | |
| Part 5 Insulation class | : | F class |
Type |
Maximum Operating Torque KgCm |
Maximum Centrifugal force n |
Suitable for Vibratory Equipments Within the range of Kg to Kg |
Weight approx. |
Rated Putput Kw |
Rated Current of 50Hz 415vA |
|
2 pole motor with approximately 2800rpm: |
|||||||
ST-4 |
4.0 |
2200 |
20 |
70 |
22 |
0.19 |
0.8 |
ST-6 |
8.0 |
4000 |
50 |
100 |
24 |
0.37 |
1.0 |
ST-8 |
12.0 |
6100 |
110 |
360 |
28 |
0.75 |
1.4 |
ST-10 |
21.0 |
10200 |
200 |
610 |
44 |
1.10 |
1.6 |
4 pole motor with approximately 1440rpm: |
|||||||
ST-4x |
22 |
2250 |
35 |
70 |
24 |
0.19 |
0.8 |
ST-6X |
35 |
4300 |
55 |
175 |
31 |
0.37 |
0.9 |
ST-7x |
52 |
6400 |
100 |
275 |
36 |
0.51 |
1.10 |
ST-8x |
78 |
9500 |
160 |
415 |
50 |
1075 |
1.50 |
ST-10x |
125 |
16000 |
300 |
730 |
72 |
1.10 |
1.90 |
ST-12x |
150 |
220 |
350 |
900 |
76 |
1.49 |
2.30 |
6 pole motor with approximately 950rpm: |
|||||||
ST-10w |
210 |
11450 |
160 |
410 |
96 |
1.10 |
1.8 |
ST-12w |
420 |
22950 |
460 |
960 |
120 |
1.49 |
3.0 |
ST-14w |
630 |
34600 |
750 |
1500 |
150 |
2.30 |
5.7 |
ST-16w |
960 |
52600 |
1030 |
2180 |
285 |
2.74 |
6.5 |
ST-18w |
1275 |
70150 |
1480 |
3000 |
320 |
3.87 |
9.0 |
